Storage
Online RAID migration
Yes
Online RAID expansion
Yes
Disk roaming
Yes
Bad block scan
Yes
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
2
Storage drive interface
Serial ATA II- Serial ATA III
Hot-swap drive bays
Yes
RAID support
Yes
RAID levels
0- 1- 5- 6- 10- 50- 60- JBOD
Supported storage drive interfaces
Serial ATA
Storage drive sizes supported
3.5"
RAID rebuild
Yes
System drive sizes supported
2.5-3.5"
Processor
Processor frequency
2 GHz
Processor family
ARM
Processor cores
4
Number of processors supported
1
Memory
Internal memory
2 GB
Maximum RAM supported
2 GB
Flash memory
4000 MB
Network
Dynamic DNS (DDNS)
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Supported network protocols
IPv4- IPv6
Jumbo frames support
Yes
iSCSI support
Yes
DHCP server
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
1
Hard drive
RAID support
Yes
RAID levels
0- 1- 5- 6- 10- 50- 60- JBOD
Design
Cooling type
Active
Fan diameter
8 cm
Product colour
White
Number of fans
1 fan(s)
LED indicators
HDD- LAN- Status- USB
Chassis type
Mini Tower
Technical details
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
White
LED indicators
HDD- LAN- Status- USB
Chassis type
Mini Tower
Number of fans
1 fan(s)
Harmonized System (HS) code
84714100
Performance
Built-in FTP server
Yes
System log
Yes
S.M.A.R.T. support
Yes
Hot spare
Yes
Disk scan
Yes
Browser supported
Apple Safari- Google Chrome- Microsoft Edge- Mozilla Firefox
Type
NAS
Device class
Home & Home Office
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Web-based management
Yes
Reset button
Yes
Operating system version
5.0.0
Operating system installed
QNAP QTS
Access Control List (ACL)
Yes
Remote administration
PPTP- L2TP/IPSec- OpenVPN- WireGuard- QBelt
Cooling
Cooling type
Active
Fan diameter
8 cm
Fan voltage
12 V
Number of fans
1 fan(s)
Security
Access Control List (ACL)
Yes
Software
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating system version
5.0.0
Operating system installed
QNAP QTS
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
External
Power supply unit (PSU) capacity
65 W
Fan voltage
12 V
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
10.81 W
Power consumption (sleep)
3.43 W
Number of power supply units
1
External power adapter
Yes
Weight & dimensions
Width
90.2 mm
Depth
156.3 mm
Height
188.6 mm
Weight
1.11 kg
Package weight
1.95 kg
Packaging content
External power adapter
Yes
Cables included
AC- LAN (RJ-45)
Power cables quantity
1
System requirements
Windows operating systems supported
Windows 10- Windows 7- Windows 8- Windows 8.1
Server operating systems supported
Windows Server 2008 R2- Windows Server 2012- Windows Server 2012 R2- Windows Server 2016- Windows Server 2019
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
1.95 kg
Cables included
AC- LAN (RJ-45)

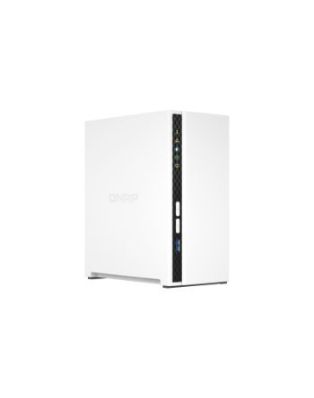

QNAP TS-233 server barebone Mini Tower White
| Length | 15.63 in |
| Width | 9.02 in |
| Height | 18.86 in |
| Weight | 1.110000 lbs |
