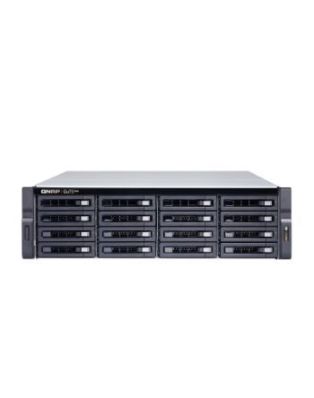

QNAP TS-h1683XU-RP E-2236 Ethernet LAN Rack (3U) Black NAS
Out of Stock
|
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
16
Storage drive size
2.5/3.5"
Hot-swap drive bays
Yes
RAID support
No
Supported storage drive interfaces
Serial ATA III
Processor
Processor manufacturer
Intel
Tjunction
100 °C
Thermal Design Power (TDP)
80 W
Tcase
73 °C
Scalability
1S
Processor threads
12
Processor socket
LGA 1151 (Socket H4)
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Coffee Lake
Processor cache
12 MB
Processor boost frequency
4.8 GHz
PCI Express slots version
3.0
PCI Express configurations
1x16-2x8-1x8+2x4
On-board graphics adapter model
Not available
CPU configuration (max)
1
Maximum internal memory supported by processor
128 GB
Processor ARK ID
191040
Processor frequency
3.4 GHz
Processor family
Intel® Xeon®
Processor model
E-2236
Processor cores
6
Memory
Internal memory type
DDR4
Internal memory
128 GB
Maximum RAM supported
128 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Ports & interfaces
USB port
Yes
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
3
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Hard drive
RAID support
No
Graphics
On-board graphics adapter model
Not available
Design
Cooling type
Active
Fan diameter
9.2 cm
Product colour
Black
Number of fans
4 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Technical details
Type
NAS
Backup function
Yes
Product colour
Black
Noise level
53 dB
LED indicators
HDD- LAN- Status
Chassis type
Rack (3U)
Buzzer
Yes
Number of fans
4 fan(s)
Performance
Type
NAS
Backup function
Yes
Operating system installed
QuTS hero
Noise level
53 dB
Buzzer
Yes
Cooling
Cooling type
Active
Fan diameter
9.2 cm
Number of fans
4 fan(s)
Software
Operating system installed
QuTS hero
Power
Power supply unit (PSU) capacity
500 W
AC input voltage
100 - 240 V
Number of power supply units
2
Weight & dimensions
Width
481 mm
Depth
573.5 mm
Height
130 mm
Weight
13.8 kg
Package weight
21.8 kg
Packaging content
Number of screws
128
Cables included
AC- Fiber- LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies
Yes
Maximum number of PCI Express lanes
16
Intel® Turbo Boost Technology
2.0
Intel® Secure Key
Yes
Intel® Quick Sync Video Technology
No
Intel® OS Guard
Yes
Intel® InTru™ 3D Technology
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Clear Video Technology
No
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Memory types supported by processor
DDR4-SDRAM
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
21.8 kg
Cables included
AC- Fiber- LAN (RJ-45)
Other features
Processor ARK ID
191040
QNAP TS-h1683XU-RP E-2236 Ethernet LAN Rack (3U) Black NAS
| Length | 57.35 in |
| Width | 48.10 in |
| Height | 13.00 in |
| Weight | 13.800000 lbs |
