Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
9
Hot-swap drive bays
Yes
Supported storage drive interfaces
Serial ATA II- Serial ATA III
Storage drive sizes supported
2.5-3.5"
Processor
Processor threads
16
Processor operating modes
64-bit
Processor boost frequency
4.4 GHz
Processor frequency
3.4 GHz
Processor family
AMD Ryzen 7
Processor model
3700X
Processor cores
8
Memory
Internal memory type
DDR4
Internal memory
32 GB
Maximum RAM supported
128 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Ethernet LAN data rate supported (max)
10000 Mbit/s
Ethernet LAN
Yes
Ethernet LAN data rates
1000-10000 Mbit/s
Wi-Fi
No
Jumbo frames support
Yes
Ports & interfaces
USB port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Fiber ports quantity
2
Fiber optic connector
SFP+
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Design
Cooling type
Active
Fan diameter
4 cm
Product colour
Black- Grey
Number of fans
3 fan(s)
LED indicators
HDD- LAN- Status
Chassis type
Rack (1U)
Technical details
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
Product colour
Black- Grey
Noise level
43.8 dB
Multilingual support
Yes
LED indicators
HDD- LAN- Status
Chassis type
Rack (1U)
Buzzer
Yes
Number of fans
3 fan(s)
Performance
Type
NAS
Device class
Small & Medium Business
Backup function
Yes
Backup features
Cloud- iSCSI LUN
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Operating system installed
QNAP Turbo System
Noise level
43.8 dB
Multilingual support
Yes
Buzzer
Yes
Cooling
Cooling type
Active
Fan diameter
4 cm
Fan voltage
12 V
Number of fans
3 fan(s)
Software
Operating system installed
QNAP Turbo System
Management features
On/off switch
Yes
Web-based management
Yes
Reset button
Yes
Power
Power supply location
Built-in
Power supply unit (PSU) capacity
300 W
Fan voltage
12 V
AC input voltage
100 - 240 V
Redundant power supply (RPS) support
Yes
Power consumption (typical)
76.43 W
Number of power supply units
2
Weight & dimensions
Width
482.6 mm
Depth
505.5 mm
Height
43.3 mm
Weight
8.62 kg
Packaging content
Number of screws
52
Quick installation guide
Yes
Cables included
AC- LAN (RJ-45)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Cables included
AC- LAN (RJ-45)

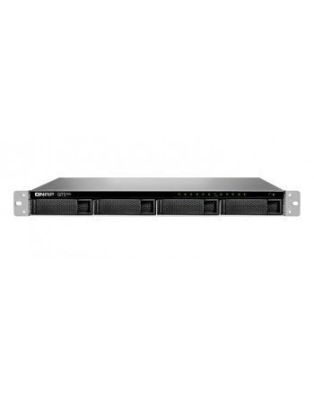

QNAP TS-h977XU-RP 3700X Ethernet LAN Rack (1U) Black, Gray NAS
Length | 50.55 in |
Width | 48.26 in |
Height | 4.33 in |
Weight | 8.620000 lbs |
