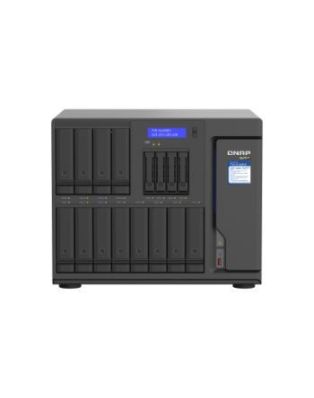

QNAP TVS-h1688X Ethernet LAN Tower Black NAS
Out of Stock
|
Storage
Storage drives installed
No
Installed storage drive type
No
Supported storage drive types
HDD & SSD
Number of storage drives supported
12
Storage drive interface
M.2- Serial ATA III
Hot-swap drive bays
Yes
RAID support
No
Storage drive sizes supported
2.5-3.5-M.2
Number of M.2 (M & B) slots
2
Processor
Processor manufacturer
Intel
Processor threads
12
Processor cache
12 MB
Processor boost frequency
4.7 GHz
On-board graphics adapter model
Intel UHD Graphics P630
Processor frequency
3.3 GHz
Processor family
Intel® Xeon®
Processor cores
6
Memory
Internal memory type
DDR4
Internal memory
32 GB
Maximum RAM supported
128 GB
Memory slots
4
Flash memory
5000 MB
Memory form factor
UDIMM
Network
Ethernet LAN
Yes
Ethernet LAN data rates
100-1000-2500-10000 Mbit/s
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Ports & interfaces
USB port
Yes
HDMI version
1.4
PCI Express x8 (Gen 3.x) slots
1
PCI Express x4 (Gen 3.x) slots
2
3.5 mm (1/8-inch) out
Yes
Microphone in
Yes
Audio in/out
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Hard drive
RAID support
No
Graphics
On-board graphics adapter model
Intel UHD Graphics P630
Design
Number of built-in speakers
1
Built-in speaker(s)
Yes
Fan diameter 2
9 cm
Cooling type
Active
Fan diameter
9.7 cm
Built-in display
Yes
Display type
LCD
Cable lock slot type
Kensington
Product colour
Black
Number of fans
5 fan(s)
LED indicators
HDD- LAN- SSD- System- USB
Chassis type
Tower
Cable lock slot
Yes
Technical details
Type
NAS
Backup function
Yes
Built-in display
Yes
Display type
LCD
Product colour
Black
Noise level
25.8 dB
LED indicators
HDD- LAN- SSD- System- USB
Chassis type
Tower
Buzzer
Yes
Number of fans
5 fan(s)
Performance
Type
NAS
Backup function
Yes
On/off switch
Yes
Operating system installed
QuTS hero
Noise level
25.8 dB
Buzzer
Yes
Cooling
Cooling type
Active
Fan diameter
9.7 cm
Number of fans
5 fan(s)
Security
Cable lock slot type
Kensington
Cable lock slot
Yes
Software
Operating system installed
QuTS hero
Management features
On/off switch
Yes
Power
Power supply unit (PSU) capacity
550 W
AC input voltage
100 - 240 V
Power consumption (typical)
108.67 W
Power consumption (sleep)
91.26 W
Weight & dimensions
Width
369.9 mm
Depth
319.8 mm
Height
303.8 mm
Weight
13.4 kg
Package weight
16.3 kg
Packaging content
Number of screws
72
Cables included
AC- LAN (RJ-45)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data
Package weight
16.3 kg
Cables included
AC- LAN (RJ-45)
QNAP TVS-h1688X Ethernet LAN Tower Black NAS
| Length | 31.98 in |
| Width | 36.99 in |
| Height | 30.38 in |
| Weight | 13.400000 lbs |
